NRF52810-QCAA-E-R7 footprint, schematic symbol and 3D model by Nordic Semiconductor

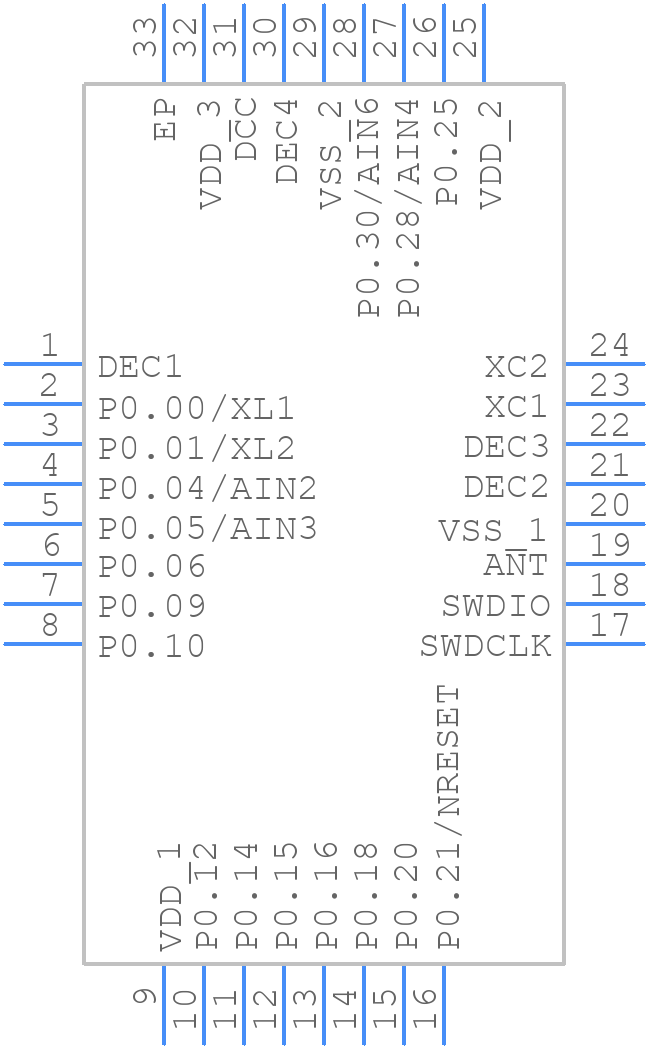

Symbol

click to zoom

PCB Footprints

NRF52810-QCAA-E-R7 - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 5 x 5

click to zoom

3D Models

NRF52810-QCAA-E-R7 - Nordic Semiconductor - 3D model - Quad Flat No-Lead - QFN32 5 x 5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NRF52810-QCAA-E-R7
Part Number NRF52810-QCAA-E-R7
Manufacturer Nordic Semiconductor
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN32 5 x 5
Released Date Oct 7, 2025
Last Modified Date Oct 7, 2025 8:34 AM UTC
Pinout / Pin List Click Here (Member Only)

NRF52810-QCAA-E-R7 Details

Manufacturer Part Number:
NRF52810-QCAA-E-R7
Part Life Cycle Code:
Contact Manufacturer
Package Description:
QFN-32
HTS Code:
8542.31.00.30
Factory Lead Time:
16 Weeks
Manufacturer:
Nordic Semiconductor
JESD-30 Code:
S-XQCC-N32
Length:
5 mm
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.9 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
1.7 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
5 mm
uPs/uCs/Peripheral ICs Type:
SoC

NRF52810-QCAA-E-R7 Frequently Asked Questions (FAQs)

The maximum operating temperature range for the NRF52810-QCAA-E-R7 is -40°C to 85°C.
The NFC tag functionality on the NRF52810-QCAA-E-R7 can be configured using the Nordic UART (NUART) interface. You need to use the NRF52810's NFC peripheral and configure it as a tag. You can refer to the Nordic Semiconductor's NFC tag example code for more information.
Yes, the NRF52810-QCAA-E-R7 supports Bluetooth 5.0, including 2Mbps and 1Mbps data rates, as well as Long Range mode. However, you need to ensure that your application is compliant with the Bluetooth 5.0 specification and that you have the necessary firmware and software support.
To optimize power consumption on the NRF52810-QCAA-E-R7, you can use various techniques such as reducing the CPU frequency, using low-power modes, disabling unnecessary peripherals, and optimizing your application's sleep modes. You can also use Nordic Semiconductor's power profiling tools to identify areas of high power consumption in your application.
Yes, the NRF52810-QCAA-E-R7 supports mesh networking through Nordic Semiconductor's nRF5 SDK for Mesh. The SDK provides a complete implementation of the Bluetooth mesh protocol and allows you to create mesh networks with multiple nodes.

Trust Checks

Community Provided

System Verified

Community Approved

NRF52810-QCAA-E-R7 Overview

Use the download button to access the NRF52810-QCAA-E-R7 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NRF52, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
