nRF52811-CAAA-R7 - Nordic Semiconductor

Description: RF System on a Chip - SoC Bluetooth 5.1 Multiprotocal

Download nRF52811-CAAA-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

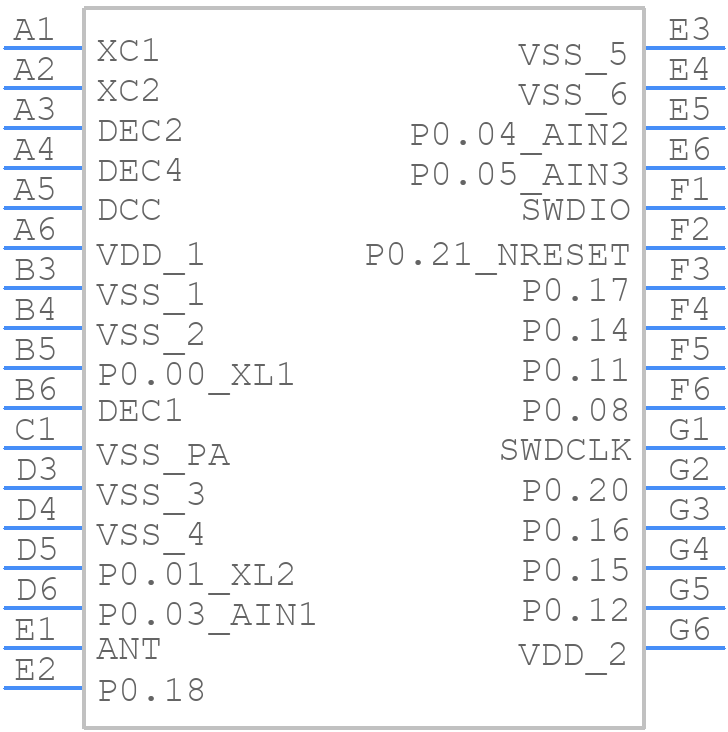

nRF52811-CAAA-R7 - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
nRF52811-CAAA-R7 - Nordic Semiconductor PCB footprint - Other - Other - WLCSP 2.482 x 2.464 mm package
click to zoom
3D Models
nRF52811-CAAA-R7 - Nordic Semiconductor - 3D model - Other - WLCSP 2.482 x 2.464 mm package
click to zoom

nRF52811-CAAA-R7 Details

  • Manufacturer Part Number:

    NRF52811-CAAA-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    WLCSP-33

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • JESD-30 Code:

    R-PBGA-B33

  • Length:

    2.482 mm

  • Number of Terminals:

    33

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA33,6X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.535 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.464 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

nRF52811-CAAA-R7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NRF52811-CAAA-R7 is -40°C to 85°C.
  • The NFC tag functionality on the NRF52811-CAAA-R7 can be configured using the Nordic UART (NUART) interface. You need to use the NRF52811's NFC peripheral and configure it as a passive NFC tag. You can refer to the Nordic Semiconductor's documentation and example code for more information.
  • The maximum current consumption of the NRF52811-CAAA-R7 is approximately 5.4mA in TX mode and 4.6mA in RX mode, both at 3.0V and 1Mbps data rate.
  • Yes, the NRF52811-CAAA-R7 is a Bluetooth 5.0 compliant device and can be used for Bluetooth 5.0 applications. It supports Bluetooth 5.0 features such as 2Mbps data rate, LE 1M and LE 2M PHYs, and LE Coded PHY.
  • The NRF52811-CAAA-R7 has a built-in secure boot mechanism that uses a combination of hardware and software to ensure the authenticity and integrity of the firmware. You need to use the Nordic Semiconductor's Secure Bootloader and follow the guidelines provided in the documentation to implement secure boot on the NRF52811-CAAA-R7.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

nRF52811-CAAA-R7 Overview

Use the download button to access the nRF52811-CAAA-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like nRF52, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
