NRF54L05-QFAA-R footprint, schematic symbol and 3D model by Nordic Semiconductor

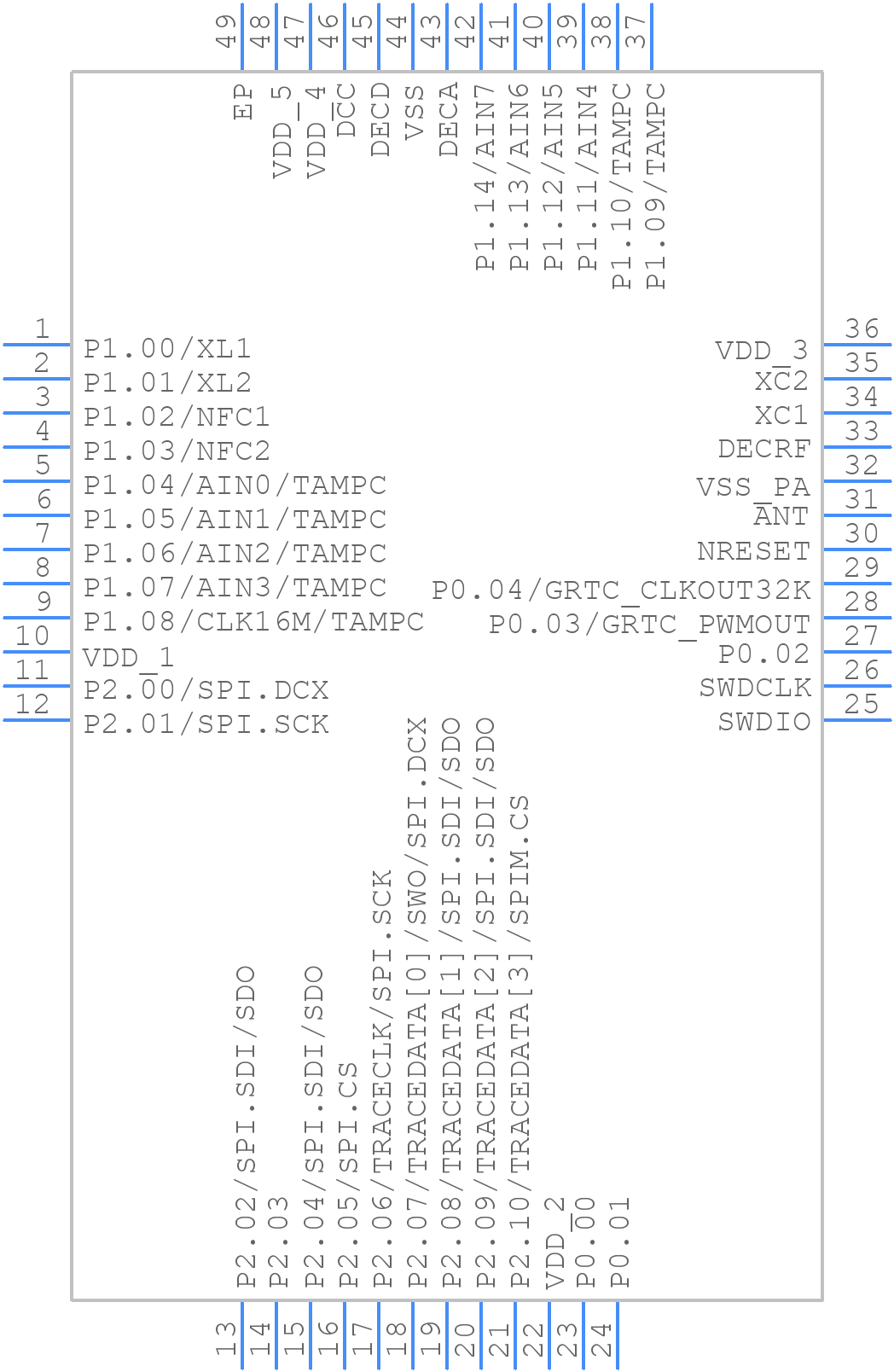

Symbol

click to zoom

PCB Footprints

NRF54L05-QFAA-R - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48 6 x 6 mm package

click to zoom

3D Models

NRF54L05-QFAA-R - Nordic Semiconductor - 3D model - Quad Flat No-Lead - QFN48 6 x 6 mm package

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NRF54L05-QFAA-R
Part Number NRF54L05-QFAA-R
Manufacturer Nordic Semiconductor
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN48 6 x 6 mm package
Released Date May 28, 2025
Last Modified Date May 28, 2025 4:02 AM UTC
Pinout / Pin List Click Here (Member Only)

NRF54L05-QFAA-R Details

Manufacturer Part Number:
NRF54L05-QFAA-R
Manufacturer:
Nordic Semiconductor

Trust Checks

Community Provided

System Verified

Community Approved

NRF54L05-QFAA-R Overview

Use the download button to access the NRF54L05-QFAA-R schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NRF54, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Nordic Semiconductor

Nordic Semiconductor is a fabless semiconductor company focused on ultra-low-power wireless solutions for IoT applications. Its portfolio includes highly integrated SoCs and SiPs supporting Bluetooth® Low Energy (BLE), Thread, Zigbee, Wi-Fi, DECT NR+, and cellular IoT standards such as LTE-M and NB-IoT. Nordic devices are designed for energy-efficient, battery-powered applications across consumer, industrial, healthcare, and smart home markets.
