- Part Number NRPN082PAEN-RC
- Manufacturer Sullins
- Pin Count 16
- Part Category Connector
- Package Category Header, Vertical
- Footprint Name Header, Vertical - NRPN082PAEN-RC
- Released Date Jul 17, 2021
- Last Modified Date Nov 21, 2023 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
NRPN082PAEN-RC Details
-
Manufacturer Part Number:
NRPN082PAEN-RC
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Sullins Connector Solutions
-
YTEOL:
8
-
Body Breadth:
0.157 inch
-
Body Depth:
0.079 inch
-
Body Length:
0.63 inch
-
Connector Type:
BOARD CONNECTOR
NRPN082PAEN-RC Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the NRPN082PAEN-RC connector is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper connection and prevent damage to the connector.
-
Yes, the NRPN082PAEN-RC connector is designed to withstand high-vibration environments. It has a ruggedized design and is built with materials that can absorb shock and vibration, making it suitable for applications such as industrial control systems, transportation, and aerospace.
-
Yes, the NRPN082PAEN-RC connector is designed to operate in harsh environments. It has a temperature range of -40°C to 105°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended operating conditions and environmental considerations to ensure reliable performance.
-
The NRPN082PAEN-RC connector has a mating cycle life of 500-1000 cycles, depending on the application and environmental conditions. This means it can withstand repeated connections and disconnections without compromising its performance or reliability.
-
Yes, the NRPN082PAEN-RC connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union countries and other regions with similar regulations.
Trust Checks
Community Provided
System Verified
Community Approved
NRPN082PAEN-RC Overview

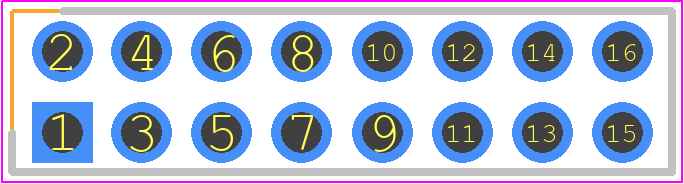

Use the download button to access the NRPN082PAEN-RC schematic symbol, PCB footprint, and 3D model.
