NSD56008 - NOVOSENSE

Description: 16-bit serialperipheral interface for control anddiagnosis• Daisy Chain capability SPI also compatible with8-bitSPIdevices • 2 CMOS compatible parallel input pins with Input Mappingfunctionality • Cranking capability down to VS = 4.1 V • Digital supply voltage range compatible with3.3Vand5Vmicrocontrollers • Very lowquiescent current • LimpHome mode • AEC-Q100 (Grade 1) qualified for automotive application

Download NSD56008 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

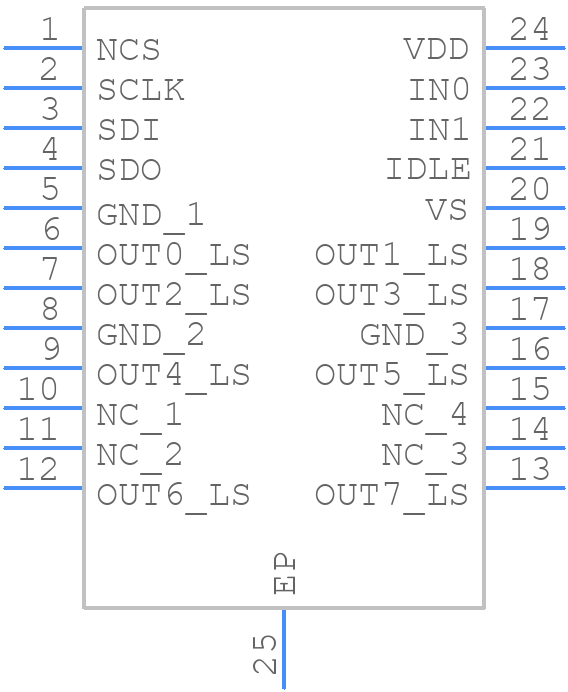

NSD56008 - NOVOSENSE - PCB symbol
click to zoom
PCB Footprints
NSD56008 - NOVOSENSE PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP24
click to zoom
3D Models
NSD56008 - NOVOSENSE - 3D model - Small Outline Packages - HTSOP24
click to zoom

NSD56008 Details

  • Manufacturer Part Number:

    NSD56008

  • Manufacturer:

    Suzhou Novosense Microelectronics Co Ltd

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NSD56008 Overview

Use the download button to access the NSD56008 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NSD56, or try a keyword search, such as Rectifier Diodes
