NSF040120D7A0J - Nexperia

NSF040120D7A0J Details

• Manufacturer Part Number:

  NSF040120D7A0J

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

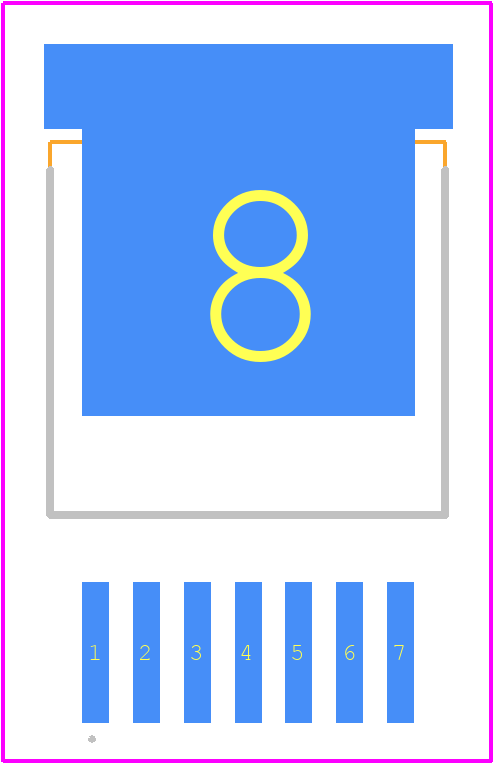

  COMPATIBLE TO-263(CB), SOT-8070-1, 7 PIN

• ECCN Code:

  EAR99

• Manufacturer:

  Nexperia

• YTEOL:

  7

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE AND KELVIN SENSOR

• DS Breakdown Voltage-Min:

  1200 V

• Drain Current-Max (ID):

  65 A

• Drain-source On Resistance-Max:

  0.06 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  6 pF

• JESD-30 Code:

  R-PSSO-G7

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  7

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  245

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  306 W

• Pulsed Drain Current-Max (IDM):

  160 A

• Reference Standard:

  IEC-60134

• Surface Mount:

  YES

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  40

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON CARBIDE
