NSI1311-Q1SWVR - NOVOSENSE

Description:  Up to 5000Vrms Insulation voltage  0.02~2V, High-Impedance Input Voltage Range  Fixed Gain: 1  Low Offset Error and Drift: ±1.5mV (Max), -5~30μV/℃(Max)

Download NSI1311-Q1SWVR Model

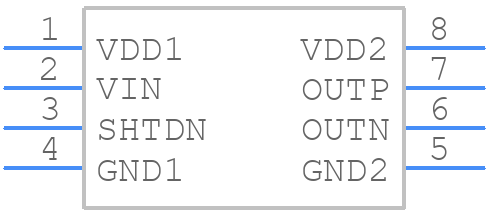

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NSI1311-Q1SWVR - NOVOSENSE PCB footprint - Small Outline Packages - Small Outline Packages - SOW8 Package Shape and Dimension in millimeters and (inches)
click to zoom
3D Models
NSI1311-Q1SWVR - NOVOSENSE  - 3D model - Small Outline Packages - SOW8 Package Shape and Dimension in millimeters and (inches)
click to zoom

NSI1311-Q1SWVR Details

  • Manufacturer Part Number:

    NSI1311-Q1SWVR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Suzhou Novosense Microelectronics Co Ltd

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Isolation Voltage-Min:

    1500 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    15.1 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.85 mm

NSI1311-Q1SWVR Frequently Asked Questions (FAQs)

  • The recommended PCB layout is to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise and EMI. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and current requirements specified in the datasheet. Additionally, it's recommended to use a voltage regulator to maintain a stable voltage supply, and to decouple the power supply lines with capacitors to reduce noise.
  • The maximum operating temperature range for the NSI1311-Q1SWVR is -40°C to 125°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To troubleshoot issues with the NSI1311-Q1SWVR, start by checking the power supply voltage and current, and ensure that the device is properly biased. Next, check the PCB layout and ensure that the input and output traces are properly routed and decoupled. If the issue persists, try replacing the device or consulting with the manufacturer's technical support team.
  • Yes, the NSI1311-Q1SWVR is compatible with lead-free soldering processes, as it is RoHS-compliant. However, it's recommended to follow the manufacturer's recommended soldering profile and temperature range to ensure reliable assembly and operation.
