NSI6602B-Q1SWR footprint, schematic symbol and 3D model by NOVOSENSE

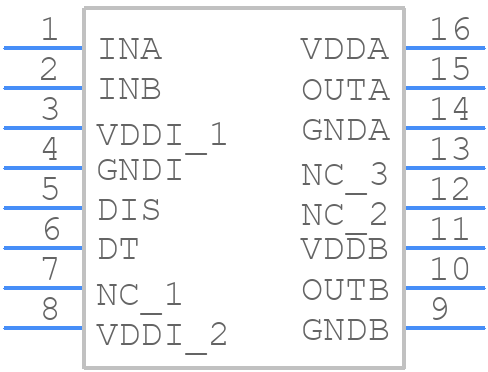

Symbol

PCB Footprints

3D Models

NSI6602B-Q1SWR Details

The recommended PCB layout is to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise and EMI. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, make sure to follow the recommended voltage supply and biasing circuitry as shown in the datasheet. The device requires a single 5V supply, and the biasing resistors should be chosen to set the output voltage to the desired level.
The NSI6602B-Q1SWR is rated for operation from -40°C to 125°C, making it suitable for automotive and industrial applications.
To protect the device from ESD and overvoltage, it's recommended to use ESD protection diodes and overvoltage protection circuits, such as TVS diodes, at the input and output pins. Additionally, follow proper handling and storage procedures to prevent ESD damage.
The typical settling time for the NSI6602B-Q1SWR is around 10-20 microseconds, depending on the output load and the input signal frequency.

Community Provided

System Verified

Community Approved

Use the download button to access the NSI6602B-Q1SWR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NSI66, or try a keyword search, such as MOSFET Drivers
