Part Image

NSI6602VB-Q1SWR - NOVOSENSE

Description: Isolated dual channel driver  Input side supply voltage: 3V to 18V  Driver side supply voltage: up to 25V with UVLO  6A peak source and 8A peak sink output  High CMTI: ±150kV/us typical  33ns typical propagation delay  6ns maximum delay matching  9ns maximum pulse width distortion  Programmable deadtime  Accepts minimum input pulse width 20ns  Operation temperature: -40℃~125℃  AEC-Q100 (Grade 1) qualified for auto-motive Application  RoHS & REACH Compliance

Download NSI6602VB-Q1SWR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NSI6602VB-Q1SWR model

Email notifications will be applied after download.

Send part feedback

Symbol

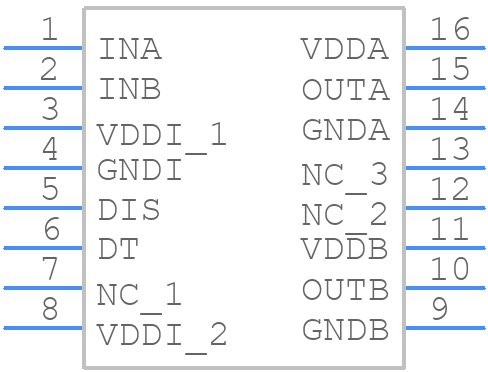

NSI6602VB-Q1SWR - NOVOSENSE - PCB symbol

PCB Footprints

NSI6602VB-Q1SWR - NOVOSENSE PCB footprint - Small Outline Packages - Small Outline Packages - SOW16

3D Models

NSI6602VB-Q1SWR - NOVOSENSE - 3D model - Small Outline Packages - SOW16

Datasheet Download Datasheet
Stock & Prices Price & Stock for NSI6602VB-Q1SWR
Part Number NSI6602VB-Q1SWR
Manufacturer NOVOSENSE
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOW16
Released Date May 27, 2025
Last Modified Date May 27, 2025 8:40 AM UTC
Pinout / Pin List Click Here (Member Only)

NSI6602VB-Q1SWR Details

Manufacturer Part Number:
NSI6602VB-Q1SWR
Manufacturer:
Suzhou Novosense Microelectronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

NSI6602VB-Q1SWR Overview

Use the download button to access the NSI6602VB-Q1SWR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NSI66, or try a keyword search, such as MOSFET Drivers
