NSI6611ASC-DSWR - NOVOSENSE

Description: 5.7kVRMSwithstand isolation voltage  SiCMOSFETs and IGBTsup to 2121Vpk  Driver side supply voltage:up to 32VwithUVLO  10Apeak source and sink output current  HighCMTI: ±150kV/us  200ns fastresponse time ofDESAT  Monitor statusof device on FLT andRDY  80ns typicalpropagation delay  400mAsoftturn off current  30nsmaximum pulsewidthdistortion  Internalmiller clamp  Active short circuitprotection  Operationambienttemperature:-40°C ~125°C  RoHS& REACHCompliant  Lead-free component, suitabl

Download NSI6611ASC-DSWR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NSI6611ASC-DSWR model

Email notifications will be applied after download.

Send part feedback

Symbol

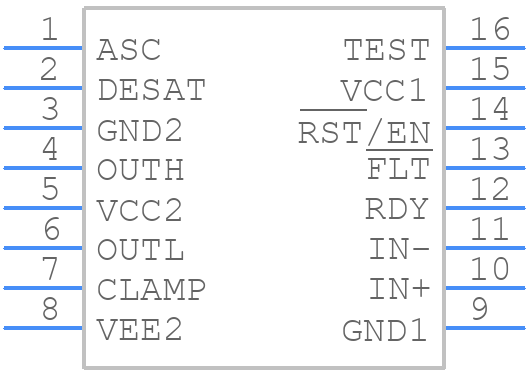

NSI6611ASC-DSWR - NOVOSENSE - PCB symbol
