NSI6611ASC-Q1SWR - NOVOSENSE

Description: 5.7kVRMS withstand isolation voltage  SiC MOSFETs and IGBTs up to 2121Vpk  Driver side supply voltage: up to 32V with UVLO  10A peak source and sink output current  High CMTI: ±150kV/us  200ns fast response time of DESAT  Monitor status of device on FLT and RDY  80ns typical propagation delay  400mA soft turn off current

Download NSI6611ASC-Q1SWR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NSI6611ASC-Q1SWR model

Email notifications will be applied after download.

Send part feedback

Symbol

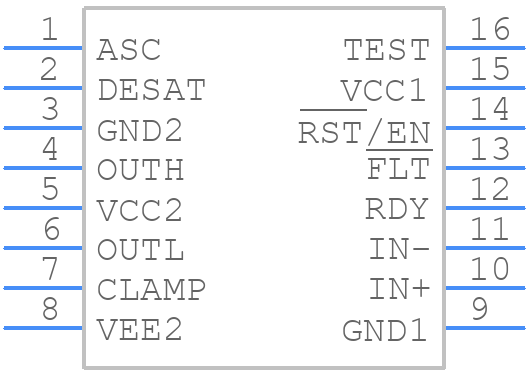

NSI6611ASC-Q1SWR - NOVOSENSE - PCB symbol

PCB Footprints

NSI6611ASC-Q1SWR - NOVOSENSE PCB footprint - Small Outline Packages - Small Outline Packages - SOW16

3D Models

NSI6611ASC-Q1SWR - NOVOSENSE - 3D model - Small Outline Packages - SOW16

Datasheet Download Datasheet
Stock & Prices Price & Stock for NSI6611ASC-Q1SWR
Part Number NSI6611ASC-Q1SWR
Manufacturer NOVOSENSE
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOW16
Released Date Oct 24, 2024
Last Modified Date Oct 24, 2024 5:58 AM UTC
Pinout / Pin List Click Here (Member Only)

NSI6611ASC-Q1SWR Details

Manufacturer Part Number:
NSI6611ASC-Q1SWR
Manufacturer:
Suzhou Novosense Microelectronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

NSI6611ASC-Q1SWR Overview

Use the download button to access the NSI6611ASC-Q1SWR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NSI66, or try a keyword search, such as MOSFET Drivers
