Part Image

NSI83085C - NOVOSENSE

Description: Isolated RS-485 transceiver in SOW16 package, 5000Vrms isolation, ±150kV/μs CMTI, -40°C to +105°C, supports up to 256 nodes, IEC & UL certified.

Download NSI83085C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

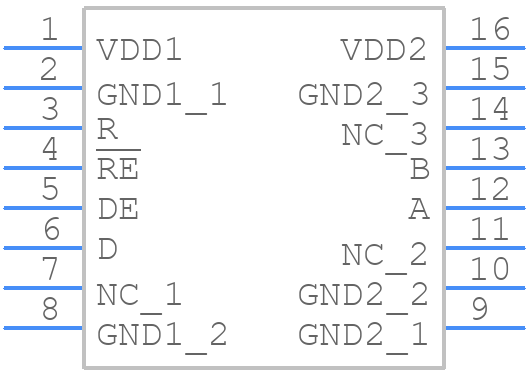

NSI83085C - NOVOSENSE - PCB symbol
click to zoom
PCB Footprints
NSI83085C - NOVOSENSE PCB footprint - Small Outline Packages - Small Outline Packages - SOW16
click to zoom
3D Models
NSI83085C - NOVOSENSE - 3D model - Small Outline Packages - SOW16
click to zoom

NSI83085C Details

  • Manufacturer Part Number:

    NSI83085C

  • Manufacturer:

    Suzhou Novosense Microelectronics Co Ltd

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NSI83085C Overview

Use the download button to access the NSI83085C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NSI83, or try a keyword search, such as Other Interface ICs
