NSJ12HL footprint, schematic symbol and 3D model by Neutrik

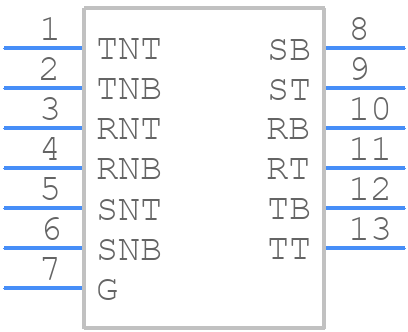

Symbol

click to zoom

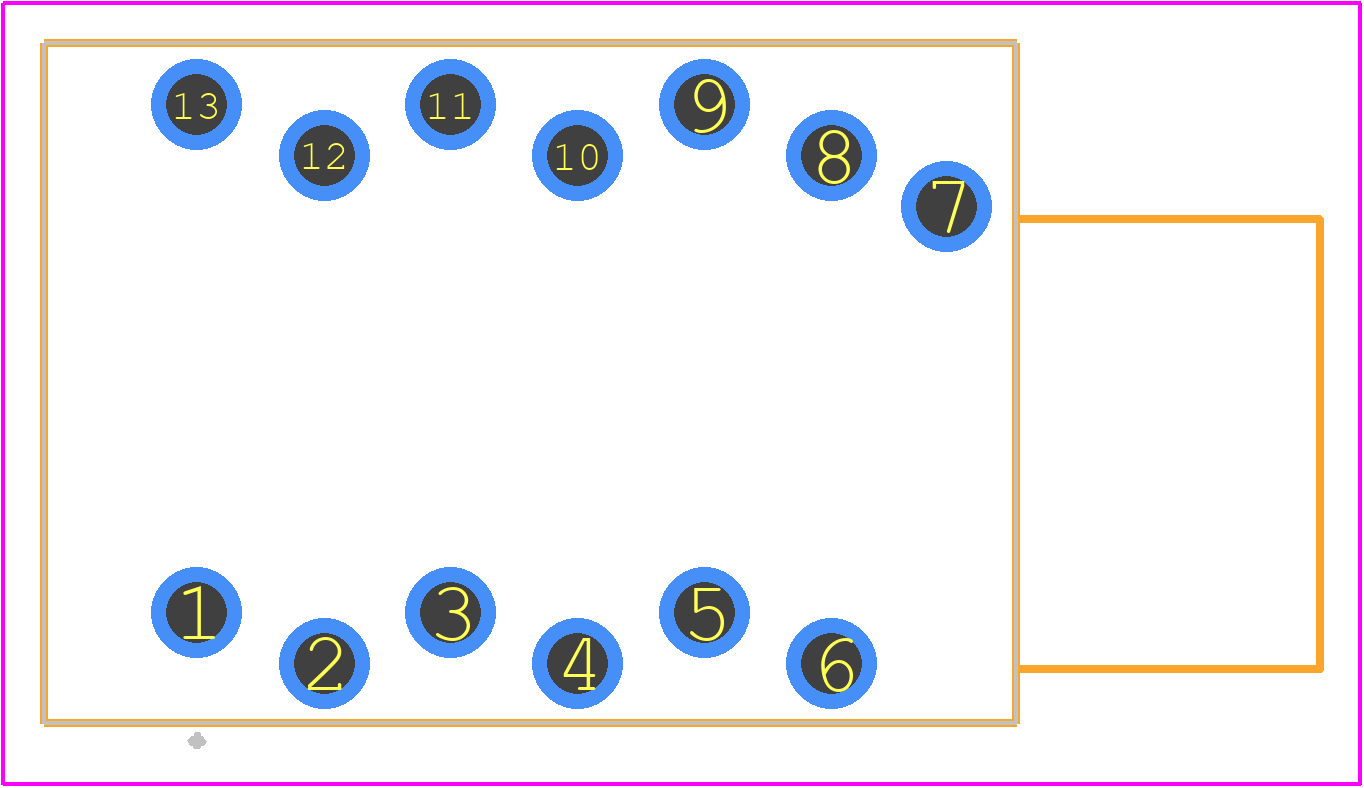

PCB Footprints

NSJ12HL - Neutrik PCB footprint - Other - Other - NSJ12HL

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NSJ12HL
Part Number NSJ12HL
Manufacturer Neutrik
Pin Count 13
Part Category Connector
Package Category Other
Footprint Name Other - NSJ12HL
Released Date Mar 16, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

NSJ12HL Details

Manufacturer Part Number:
NSJ12HL
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Neutrik USA Inc
YTEOL:
0
Audio Type:
STEREO
Body Breadth:
1.15 inch
Body Depth:
1.296 inch
Body Length:
0.669 inch
Body/Shell Style:
JACK
Connector Type:
6.3MM AUDIO
Contact Finish Mating:
AG
Contact Gender:
FEMALE
Contact Material:
BRONZE
Contact Resistance:
15 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
1000VDC V
Durability:
1000 Cycles
Insertion Force-Max:
20.016 N
Insulation Resistance:
1000000000 Ω
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Poles:
1
Number of Ports:
2
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-20 °C
Plating Thickness:
79u inch
Polarization Key:
POLARIZED KEY
Rated Current (Signal):
3 A
Terminal Length:
0.13 inch
Termination Type:
SOLDER
Withdrawl Force-Min:
9.7856 N

NSJ12HL Frequently Asked Questions (FAQs)

The recommended torque for the NSJ12HL connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 1.5 Nm to 2.5 Nm (13.3 in-lbs to 22.1 in-lbs) for the hex nuts.
Yes, the NSJ12HL connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress. However, it's essential to follow proper installation and sealing procedures to maintain the connector's environmental rating.
Yes, the NSJ12HL connector is designed to withstand high-vibration environments. Its rugged construction and secure locking mechanism ensure reliable connections even in demanding applications.
The maximum cable diameter that can be used with the NSJ12HL connector is 12 mm (0.47 in). It's essential to ensure the cable diameter is within this range to maintain the connector's performance and reliability.
Yes, the NSJ12HL connector is designed to be compatible with other Neutrik products, including their range of XLR connectors, adapters, and cable assemblies. This ensures seamless integration and reliable connections in various applications.

Trust Checks

Expert Contribution

System Verified

Community Approved

NSJ12HL Overview

Use the download button to access the NSJ12HL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NSJ12, or try a keyword search, such as Audio/RCA Connectors
