NSPE-H560M50V10X10.8NBF - NIC Components

Description: NIC Components 56μF 50 V dc Hybrid Conductive Polymer Aluminium Capacitor, NSPE-H Series 10000h 10 Dia. x 10.8mm

Download NSPE-H560M50V10X10.8NBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NSPE-H560M50V10X10.8NBF - NIC Components - PCB symbol
click to zoom
PCB Footprints

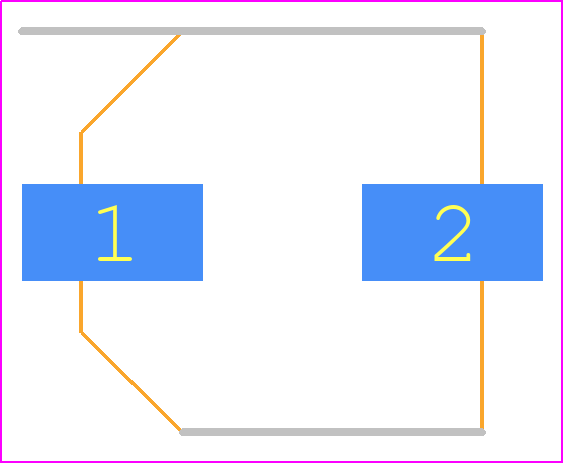

NSPE-H560M50V10X10.8NBF - NIC Components PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 10X10.8
click to zoom
3D Models
NSPE-H560M50V10X10.8NBF - NIC Components - 3D model - Capacitor Al Electrolytic - 10X10.8
click to zoom

NSPE-H560M50V10X10.8NBF Details

  • Manufacturer Part Number:

    NSPE-H560M50V10X10.8NBF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    NIC Components Corp

  • YTEOL:

    0

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    56 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    25 mΩ

  • Height:

    10.8 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.028 mA

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    232 mA

  • Size Code:

    4141

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    10.3 mm

NSPE-H560M50V10X10.8NBF Frequently Asked Questions (FAQs)

  • The recommended land pattern for NSPE-H560M50V10X10.8NBF can be found in the NIC Components Corp. application note or by contacting their technical support team.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the component's power handling at high temperatures. Consult with NIC Components Corp. for specific guidance on high-temperature applications.
  • Follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. NIC Components Corp. may also provide additional ESD handling guidelines.
  • NIC Components Corp. recommends following the JEDEC J-STD-020 standard for soldering profiles. However, it's best to consult with their technical support team for specific guidance on soldering profiles for NSPE-H560M50V10X10.8NBF.
  • While the datasheet doesn't specify vibration tolerance, NIC Components Corp. may have additional information on the component's vibration resistance. Consult with their technical support team for guidance on using NSPE-H560M50V10X10.8NBF in high-vibration environments.
