Part Image

NSS60101DMTTBG - onsemi

Description: NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable; NSV60101DMTWTBG - Wettable Flanks Packaged Device; These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant; 1A IDC, 2A ICM; Low VCE(sat): 0.115V @ 1A IC, IC/IB= 10; Beta of 180 @ 1ADC, VCE = 2V

Download NSS60101DMTTBG Model

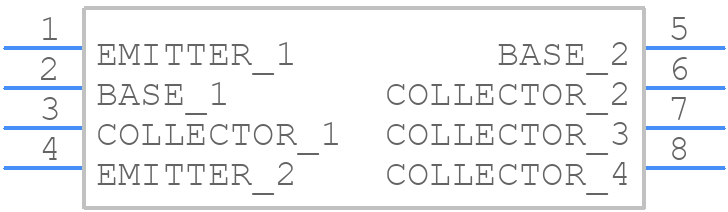

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NSS60101DMTTBG - onsemi PCB footprint - Other - Other - NSS60101DMTTBG-1
click to zoom
3D Models
NSS60101DMTTBG - onsemi  - 3D model - Other - NSS60101DMTTBG-1
click to zoom

NSS60101DMTTBG Details

  • Manufacturer Part Number:

    NSS60101DMTTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Package Description:

    WDFN-6

  • Manufacturer Package Code:

    506AN

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.75

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    1 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    35

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation Ambient-Max:

    2.27 W

  • Power Dissipation-Max (Abs):

    2.27 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    180 MHz

  • VCEsat-Max:

    0.2 V

NSS60101DMTTBG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
  • The maximum allowed voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the device.
  • Yes, the NSS60101DMTTBG is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure you follow the recommended operating conditions and design guidelines.
  • Use a shielded layout, keep sensitive traces away from the NSS60101DMTTBG, and add EMI filters or chokes as needed. Follow good PCB design practices and consult the onsemi application note for EMI reduction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NSS60101DMTTBG Overview

Use the download button to access the NSS60101DMTTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NSS60, or try a keyword search, such as Small Signal Bipolar Transistors

Parts related to NSS60101DMTTBG

Showing 0 results

NSS60101DMTTBG Alternates

Showing results

Image Part Number Model
Part Image NSV60101DMTWTBG onsemi

Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 2-Element, NPN, Silicon
