A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path short and direct to the heat sink or thermal pad.
To ensure reliable operation in high-temperature environments, follow the recommended operating temperature range, use a heat sink or thermal pad, and consider using thermal interface materials to improve heat transfer.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced lifespan, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the recommended temperature range.
While the NST1602CLTWG is not specifically designed for high-humidity environments, it can still be used with proper precautions. Ensure the device is properly sealed, and consider using conformal coating or potting to protect it from moisture.
The NST1602CLTWG has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Use an ESD wrist strap, mat, or workstation, and store the devices in anti-static packaging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NST1602CLTWG Overview

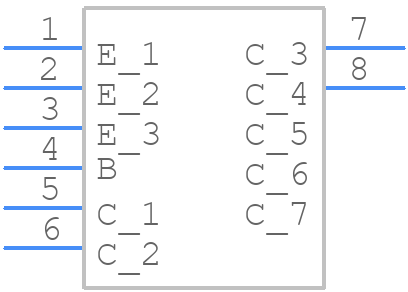

Use the download button to access the NST1602CLTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NST16,
or try a keyword search, such as Power Bipolar Transistors
