The recommended PCB layout and land pattern can be found in the NT1191GEAE3S application note or by contacting Nisshinbo Micro Devices' technical support. A general guideline is to follow the JEDEC standard for QFN packages, with a minimum of 4 layers, and to ensure good thermal dissipation and signal integrity.
The NT1191GEAE3S has a thermal pad on the bottom side, which should be connected to a thermal ground plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
The NT1191GEAE3S has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure that the device is operated within the specified temperature range to prevent damage or degradation.
To troubleshoot issues, start by reviewing the datasheet and application notes, and verify that the device is used within the specified operating conditions. Check for proper PCB layout, signal integrity, and power supply quality. Use oscilloscopes or logic analyzers to debug the issue, and consider contacting Nisshinbo Micro Devices' technical support for further assistance.
Yes, the NT1191GEAE3S is a sensitive device and requires proper ESD protection during handling and assembly. Use ESD-safe materials, wrist straps, and mats, and follow standard ESD handling procedures to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NT1191GEAE3S Overview

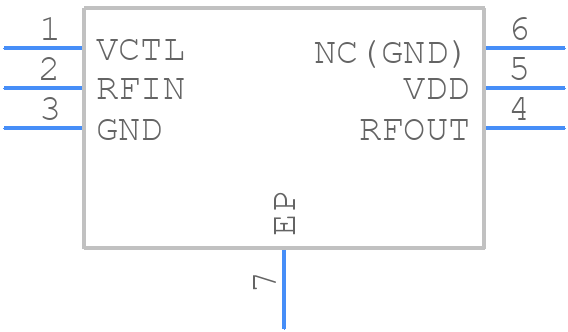

Use the download button to access the NT1191GEAE3S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NT119,
or try a keyword search, such as RF/Microwave Amplifiers
