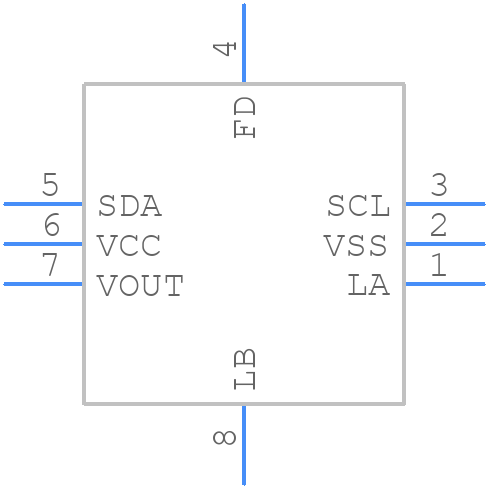

NT3H2111W0FHK - NXP

NT3H2111W0FHK Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  NXP provides a recommended PCB layout in the application note AN11535, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to minimize thermal resistance.
• How do I ensure reliable operation at high temperatures?
  To ensure reliable operation at high temperatures, follow the recommended operating conditions, use a suitable thermal interface material, and consider using a heat sink or thermal management system. Also, ensure that the device is properly soldered and the PCB is designed to minimize thermal stress.
• What is the maximum allowed voltage on the input pins?
  The maximum allowed voltage on the input pins is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its reliability.
• Can I use this device in a high-humidity environment?
  The NT3H2111W0FHK is not hermetically sealed, so it's not recommended for use in high-humidity environments. If you need to operate in humid conditions, consider using a device with a hermetic package or applying conformal coating to protect the device.
• What is the recommended ESD protection for this device?
  NXP recommends using ESD protection devices, such as diodes or TVS arrays, to protect the NT3H2111W0FHK from electrostatic discharge. Follow the guidelines in the application note AN11352 for ESD protection.
