NT3H2211W0FHKH - NXP

Description: RFID Transponders NTAG I C <i>plus</i> 2K, Product Longevity Program, NFC Forum Type 2 Tag I C interface for entry-level NFC apps

Download NT3H2211W0FHKH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

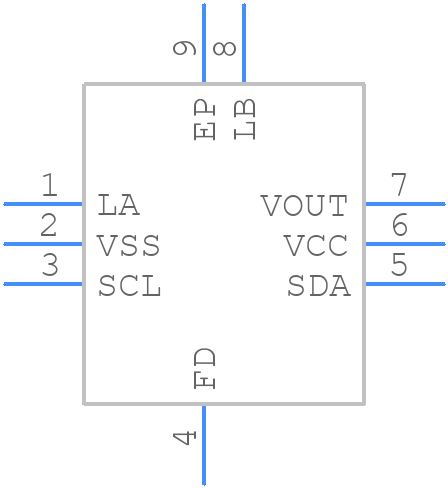

NT3H2211W0FHKH - NXP - PCB symbol
click to zoom
PCB Footprints
NT3H2211W0FHKH - NXP PCB footprint - Other - Other - SOT902-3
click to zoom
3D Models
NT3H2211W0FHKH - NXP - 3D model - Other - SOT902-3
click to zoom

NT3H2211W0FHKH Details

  • Manufacturer Part Number:

    NT3H2211W0FHKH

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    XQFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT902-3

  • HTS Code:

    8542.32.00

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • JESD-30 Code:

    S-PQCC-N8

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC8,.07SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.67 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

NT3H2211W0FHKH Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C.
  • Use a metal shield or a shielded enclosure to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Ensure proper grounding and decoupling of the device and surrounding components.
  • Implement power-saving modes, such as dynamic voltage and frequency scaling, and optimize the system's clock frequency and voltage supply. Use the device's built-in power management features, such as the power-down mode.
  • Use a 4-wire Kelvin connection for accurate voltage and current measurements. Ensure the test setup is properly calibrated and isolated from noise sources. Use a logic analyzer or oscilloscope to monitor signal integrity and timing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NT3H2211W0FHKH Overview

Use the download button to access the NT3H2211W0FHKH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NT3H2, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
