NTA1205MC - Murata Electronics

Description: Murata Power Solutions 1W Isolated DC-DC Converter, Vin 10.8 → 13.2 V dc, Vout ±5V dc, I/O isolation 1kV dc

Download NTA1205MC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

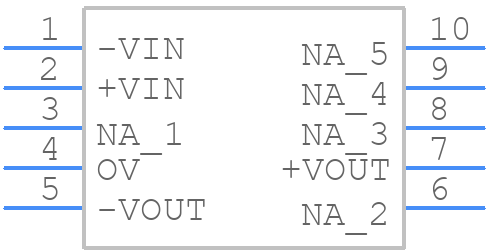

Symbol
NTA1205MC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NTA1205MC - Murata Electronics PCB footprint - Small Outline Packages - Small Outline Packages - NTA1205MC
click to zoom
3D Models
NTA1205MC - Murata Electronics - 3D model - Small Outline Packages - NTA1205MC
click to zoom

NTA1205MC Details

  • Manufacturer Part Number:

    NTA1205MC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-18/10

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    ADDITIONAL -5V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-G10

  • JESD-609 Code:

    e4

  • Load Regulation-Max:

    12%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10/18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

NTA1205MC Frequently Asked Questions (FAQs)

  • Murata recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended for high-frequency applications.
  • The NTA1205MC is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, and avoid exposing the device to extreme temperatures during storage or operation.
  • Murata recommends using input and output capacitors with a value of 10uF to 22uF, with a voltage rating of 6.3V or higher. The capacitor type should be X5R or X7R, with a low ESR (Equivalent Series Resistance) to minimize power loss.
  • The NTA1205MC has a built-in soft-start feature, which helps to reduce inrush current during power-up. For power-down, ensure a gradual decrease in input voltage to prevent damage to the device. A recommended power-down sequence is to reduce the input voltage to 0V within 10ms.
  • The NTA1205MC can tolerate an input voltage ripple of up to 10% of the nominal input voltage. Exceeding this limit may affect the device's performance and reliability.
