Part Image

NTA53321G0FHKZ - NXP

Description: Interface - Specialized NTAG

Download NTA53321G0FHKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

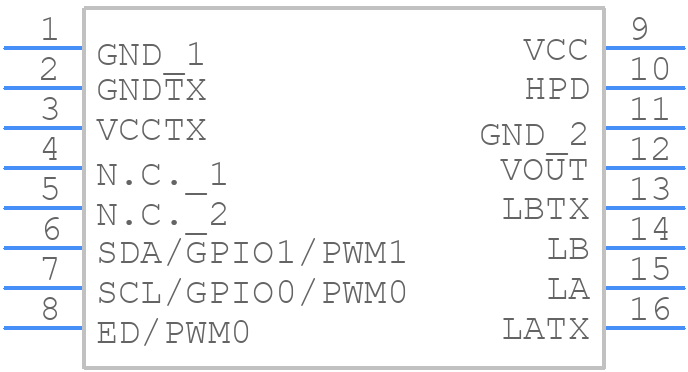

NTA53321G0FHKZ - NXP PCB footprint - Other - Other - NTA53321G0FHKZ-4
click to zoom
3D Models
NTA53321G0FHKZ - NXP  - 3D model - Other - NTA53321G0FHKZ-4
click to zoom

NTA53321G0FHKZ Details

  • Manufacturer Part Number:

    NTA53321G0FHKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    XQFN-16

  • HTS Code:

    8542.32.00

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-01-15

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Additional Feature:

    OPERATES WITH -40 TO 85 FOR EEPROM WRITE OPERATION

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,1X.07,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

NTA53321G0FHKZ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NTA53321G0FHKZ is 1.71 V to 3.6 V.
  • To ensure stability, it's recommended to use a minimum output capacitance of 10 μF, and a maximum ESR of 1 Ω. Additionally, the output voltage can be stabilized by using a capacitor with a low ESR and a high-quality ceramic capacitor.
  • The maximum current rating for the NTA53321G0FHKZ is 3 A. However, it's recommended to operate within the specified current range to ensure reliability and prevent overheating.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum current and voltage simultaneously. Also, consider using a thermal pad or thermal interface material to improve heat dissipation.
  • Key considerations for PCB layout and design include keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces to reduce noise and EMI.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTA53321G0FHKZ Overview

Use the download button to access the NTA53321G0FHKZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTA53, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.

Parts related to NTA53321G0FHKZ

Showing 0 results
