NTA53321G0FTTZ - NXP

Description: Interface - Specialised NTAG

Download NTA53321G0FTTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

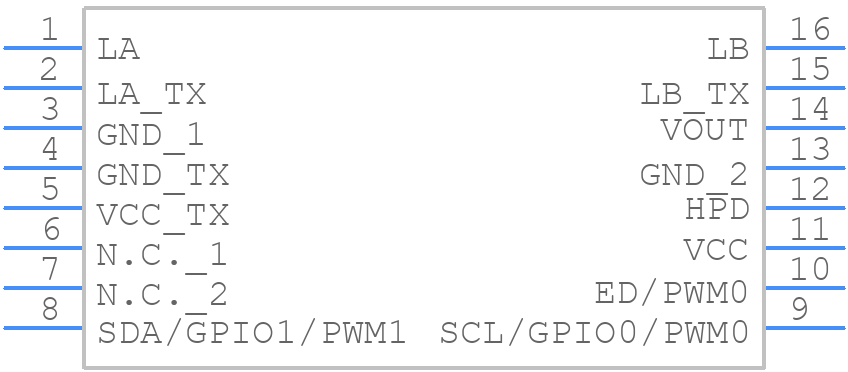

NTA53321G0FTTZ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16 (SOT403-1)
click to zoom
3D Models
NTA53321G0FTTZ - NXP  - 3D model - Small Outline Packages - TSSOP16 (SOT403-1)
click to zoom

NTA53321G0FTTZ Details

  • Manufacturer Part Number:

    NTA53321G0FTTZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.32.00

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-01-15

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Additional Feature:

    OPERATES WITH -40 TO 85 FOR EEPROM WRITE OPERATION

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER
