Part Image

NTBLS1D1N08H - onsemi

Description: Low RDS(on); Low QG and Capacitance; Lowers Switching Noise/EMI; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Download NTBLS1D1N08H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

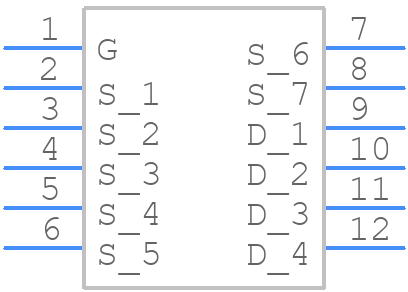

Symbol
NTBLS1D1N08H - onsemi - PCB symbol
click to zoom
PCB Footprints
NTBLS1D1N08H - onsemi PCB footprint - Other - Other - H−PSOF8L 11.68x9.80_2022
click to zoom
3D Models
NTBLS1D1N08H - onsemi - 3D model - Other - H−PSOF8L 11.68x9.80_2022
click to zoom

NTBLS1D1N08H Details

  • Manufacturer Part Number:

    NTBLS1D1N08H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-LL 8L

  • Package Description:

    H-PSOF8L, 8 PIN

  • Manufacturer Package Code:

    100CU

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2019-10-14

  • Manufacturer:

    onsemi

  • YTEOL:

    5.9

  • Avalanche Energy Rating (Eas):

    1580 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    351 A

  • Drain-source On Resistance-Max:

    0.00105 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    49 pF

  • JEDEC-95 Code:

    MO-299A

  • JESD-30 Code:

    R-PSSO-F2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    311 W

  • Pulsed Drain Current-Max (IDM):

    900 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NTBLS1D1N08H Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NTBLS1D1N08H is -40°C to 150°C.
  • To ensure reliability, follow the recommended assembly and handling procedures, and ensure that the device is operated within the specified voltage and current ratings. Additionally, consider using a thermal management system to prevent overheating.
  • A recommended PCB layout for the NTBLS1D1N08H includes a thermal pad connected to a large copper area for heat dissipation. A thermal management strategy should include a heat sink or thermal interface material to reduce thermal resistance.
  • To troubleshoot issues, check the device's operating conditions, including voltage, current, and temperature. Verify that the device is properly soldered and that the PCB layout meets the recommended thermal management strategy. Use a thermal imaging camera or thermocouple to monitor the device's temperature.
  • Yes, the NTBLS1D1N08H is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, and ensure that the PCB design includes ESD protection measures, such as TVS diodes or ESD protection arrays.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTBLS1D1N08H Overview

Use the download button to access the NTBLS1D1N08H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTBLS, or try a keyword search, such as Power Field-Effect Transistors
