NTBT035N65GN1TXG - onsemi

Description: No Reverse-Recovery Charge; Capable of Reverse Conduction; Optimized for High Switching Frequency (500 kHz to 2 MHz); Low Gate Charge and Output Charge (Qoss, Qg)

Download NTBT035N65GN1TXG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NTBT035N65GN1TXG model

Email notifications will be applied after download.

Send part feedback

Symbol

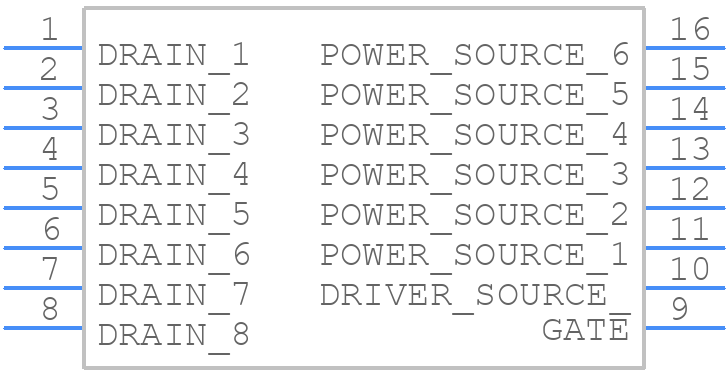

NTBT035N65GN1TXG - onsemi - PCB symbol

PCB Footprints

NTBT035N65GN1TXG - onsemi PCB footprint - Other - Other - PDSO-G16 9.90 x 10.15 x 2.30, 1.20P CASE 208AA_2026-5.5

Datasheet Download Datasheet
Stock & Prices Price & Stock for NTBT035N65GN1TXG
Part Number NTBT035N65GN1TXG
Manufacturer onsemi
Pin Count 16
Part Category Transistor
Package Category Other
Footprint Name Other - PDSO-G16 9.90 x 10.15 x 2.30, 1.20P CASE 208AA_2026-5.5
Released Date Jul 10, 2026
Last Modified Date Jul 10, 2026 4:37 AM UTC
Pinout / Pin List Click Here (Member Only)

NTBT035N65GN1TXG Details

Manufacturer Part Number:
NTBT035N65GN1TXG
Manufacturer:
onsemi
