NTE0506MC-R - Murata Electronics

Description: Isolated DC/DC Converters 5Vin 6Vout 167mA tape and reel

Download NTE0506MC-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

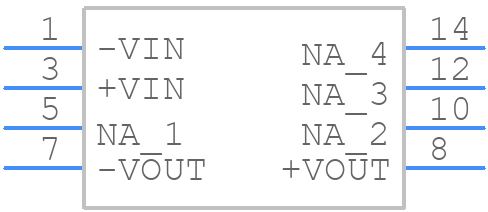

NTE0506MC-R - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NTE0506MC-R - Murata Electronics PCB footprint - Other - Other - NTE0506MC-R-2
click to zoom
3D Models
NTE0506MC-R - Murata Electronics - 3D model - Other - NTE0506MC-R-2
click to zoom

NTE0506MC-R Details

  • Manufacturer Part Number:

    NTE0506MC-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-G8

  • JESD-609 Code:

    e4

  • Length:

    12.7 mm

  • Load Regulation-Max:

    10%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.167 A

  • Output Voltage-Nom:

    6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8/14,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.6 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    7.7 mm

NTE0506MC-R Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and thermal performance.
  • The thermal pad should be connected to a solid ground plane on the PCB to ensure efficient heat dissipation. A thermal via or a thermal pad with a thermal relief pattern can be used to connect the thermal pad to the ground plane.
  • The NTE0506MC-R can operate from -40°C to 125°C, but the maximum junction temperature (Tj) should not exceed 150°C to ensure reliable operation and prevent thermal damage.
  • Yes, the NTE0506MC-R is designed to withstand vibrations up to 10G (10m/s²) in the frequency range of 10Hz to 2000Hz, making it suitable for use in high-vibration environments such as automotive or industrial applications.
  • The NTE0506MC-R meets various safety certifications, including UL, EN, and IEC. To ensure compliance, follow the recommended PCB layout, component placement, and assembly guidelines, and consult with Murata's application notes and safety certifications documentation.
