NTE0506MC - Murata Electronics

Description: MURATA POWER SOLUTIONS - NTE0506MC - DC-DC CONVERTER, ISO POL, 1 O/P, 1W, 167mA, 6V

Download NTE0506MC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

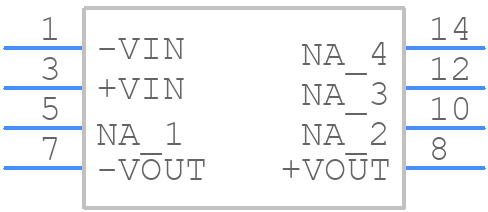

NTE0506MC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NTE0506MC - Murata Electronics PCB footprint - Other - Other - NTE0506MC-1
click to zoom
3D Models
NTE0506MC - Murata Electronics - 3D model - Other - NTE0506MC-1
click to zoom

NTE0506MC Details

  • Manufacturer Part Number:

    NTE0506MC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-G8

  • JESD-609 Code:

    e4

  • Length:

    12.7 mm

  • Load Regulation-Max:

    10%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.167 A

  • Output Voltage-Nom:

    6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8/14,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.6 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    7.7 mm

NTE0506MC Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
  • The NTE0506MC has a high power density, so it's essential to ensure good thermal conductivity. Use a thermal pad or via under the component, and consider using a heat sink or thermal interface material to reduce thermal resistance.
  • The NTE0506MC is rated for operation from -40°C to +125°C, but derating is required above 85°C. Consult the datasheet for specific derating curves and guidelines.
  • Yes, the NTE0506MC is designed to withstand vibrations up to 10G (10Hz to 2000Hz). However, it's essential to ensure proper mounting and soldering to prevent mechanical stress and damage.
  • Follow proper PCB design and layout guidelines, such as keeping the component away from noise sources, using shielding, and implementing proper grounding and decoupling techniques to minimize electromagnetic interference (EMI).
