NTE1209MC - Murata Electronics

Description: Murata Power Solutions 1W Isolated DC-DC Converter, Vin 10.8 → 13.2 V dc, Vout 9V dc, I/O isolation 1kV dc

Download NTE1209MC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

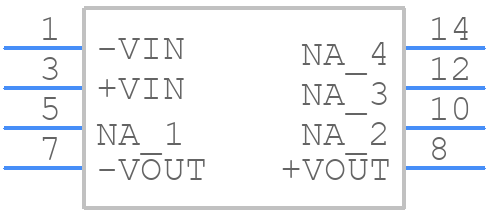

Symbol
NTE1209MC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NTE1209MC - Murata Electronics PCB footprint - Small Outline Packages - Small Outline Packages - NTE1209MC
click to zoom
3D Models
NTE1209MC - Murata Electronics - 3D model - Small Outline Packages - NTE1209MC
click to zoom

NTE1209MC Details

  • Manufacturer Part Number:

    NTE1209MC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDMA-G8

  • Load Regulation-Max:

    9%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.111 A

  • Output Voltage-Nom:

    9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8/14,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    0.999 W

  • Trim/Adjustable Output:

    NO

NTE1209MC Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
  • The thermal pad on the NTE1209MC should be connected to a solid copper plane on the PCB to ensure efficient heat dissipation. A thermal via or a thermal pad with a thermal relief pattern can be used to connect the thermal pad to the copper plane.
  • The NTE1209MC can operate safely up to 125°C, but the maximum operating temperature range is dependent on the specific application and the customer's requirements. It's recommended to consult with Murata's application engineers for specific guidance.
  • Yes, the NTE1209MC is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) and can be used in high-vibration environments. However, it's recommended to consult with Murata's application engineers to ensure the component meets the specific vibration requirements of the application.
  • The NTE1209MC meets various safety certifications, including UL, ENEC, and CQC. To ensure compliance, it's recommended to consult with Murata's application engineers and follow the recommended PCB layout, component placement, and manufacturing guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTE1209MC Overview

Use the download button to access the NTE1209MC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTE12, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
