NTE3046 - NTE ELECTRONICS

Description: 1 CHANNEL SCR OUTPUT OPTOCOUPLER

Download NTE3046 Model

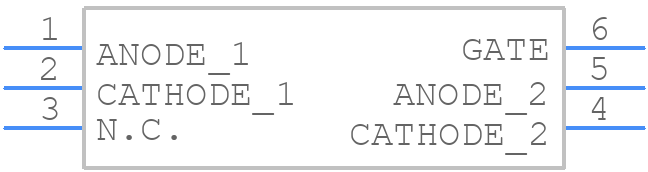

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTE3046 - NTE ELECTRONICS PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NTE3046
click to zoom
3D Models
NTE3046 - NTE ELECTRONICS  - 3D model - Dual-In-Line Packages - NTE3046
click to zoom

NTE3046 Details

  • Manufacturer Part Number:

    NTE3046

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, DIP-6

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    NTE Electronics Inc

  • YTEOL:

    0

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.06 A

  • Input Trigger Current-Nom:

    5 mA

  • JESD-609 Code:

    e0

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    SCR OUTPUT OPTOCOUPLER

  • Peak Off-state Voltage-Min:

    400 V

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

NTE3046 Frequently Asked Questions (FAQs)

  • The maximum safe operating temperature for the NTE3046 is 150°C, as specified in the datasheet. However, it's recommended to operate the transistor within a temperature range of -55°C to 125°C for optimal performance and reliability.
  • While the NTE3046 can be used as a switch, it's not recommended for high-frequency circuits due to its relatively high transition frequency (fT) of 30 MHz. For high-frequency applications, a transistor with a higher fT is recommended.
  • To ensure proper biasing for linear amplifier applications, follow these steps: 1) Choose a suitable collector-emitter voltage (Vce) and collector current (Ic) based on the application requirements. 2) Select a base-emitter voltage (Vbe) that provides the desired current gain. 3) Use a voltage divider or other biasing network to establish the desired quiescent point. 4) Verify the transistor's operating point using a load line analysis or simulation tools.
  • The maximum collector current (Ic) that the NTE3046 can handle is 10 A, as specified in the datasheet. However, it's essential to ensure that the transistor is properly heat-sinked and that the current is within the safe operating area (SOA) to prevent overheating and damage.
  • Yes, the NTE3046 can be used in a push-pull amplifier configuration. However, it's crucial to ensure that the transistors are properly matched and biased to minimize distortion and ensure optimal performance. Additionally, consider using a complementary transistor pair to achieve a more symmetrical output.
