NTE3221 - NTE ELECTRONICS

Description: NTE ELECTRONICS - NTE3221 - OPTOCOUPLER, TRANSISTOR, 5000VRMS

Download NTE3221 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

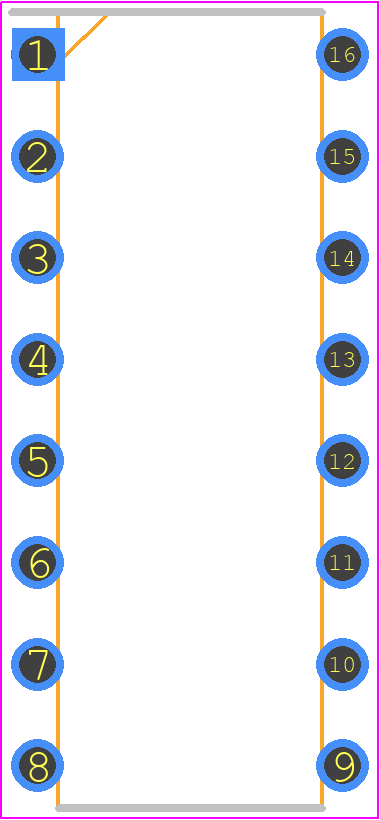

NTE3221 - NTE ELECTRONICS PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NTE3221
click to zoom
3D Models
NTE3221 - NTE ELECTRONICS  - 3D model - Dual-In-Line Packages - NTE3221
click to zoom

NTE3221 Details

  • Manufacturer Part Number:

    NTE3221

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-16

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    NTE Electronics Inc

  • YTEOL:

    0

  • Coll-Emtr Bkdn Voltage-Min:

    35 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER
