A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the onsemi application note AND9093/D.
The NTGS3441T1G requires a specific biasing scheme to achieve optimal performance. A recommended biasing circuit is shown in the datasheet, but it's essential to ensure that the voltage and current limits are not exceeded. A detailed biasing guide can be found in the onsemi application note AND9093/D.
Operating the NTGS3441T1G at high temperatures can affect its performance, reliability, and lifespan. The device is rated for operation up to 150°C, but the datasheet provides derating curves to help designers estimate the device's performance at elevated temperatures. It's essential to consider thermal management and heat dissipation strategies to ensure reliable operation.
Troubleshooting issues with the NTGS3441T1G requires a systematic approach. First, verify that the device is properly biased and that the input and output impedances are matched. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. If issues persist, consult the onsemi application note AND9093/D for troubleshooting guidelines and contact onsemi support for further assistance.
The NTGS3441T1G is a sensitive device that requires proper ESD protection and handling. The datasheet provides guidelines for ESD protection, but it's essential to follow standard ESD handling procedures, such as using wrist straps, anti-static bags, and ESD-safe workstations, to prevent damage during handling and assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTGS3441T1G Overview

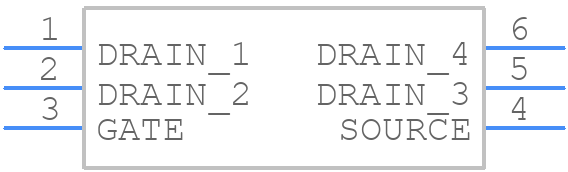

Use the download button to access the NTGS3441T1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTGS3,
or try a keyword search, such as Power Field-Effect Transistors
