NTLJD4116NT1G - onsemi

Description: Mosfet Array 30V 2.5A 710mW Surface Mount 6-WDFN (2x2)-55°C ~ 150°C (TJ)

Download NTLJD4116NT1G Model

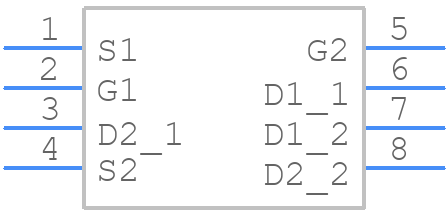

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTLJD4116NT1G - onsemi PCB footprint - Other - Other - WDFN6 2x2, 0.65P CASE 506AN ISSUE H_2025
click to zoom
3D Models
NTLJD4116NT1G - onsemi  - 3D model - Other - WDFN6 2x2, 0.65P CASE 506AN ISSUE H_2025
click to zoom

NTLJD4116NT1G Details

  • Manufacturer Part Number:

    NTLJD4116NT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN6 2x2, 0.65P

  • Package Description:

    2 X 2 MM, LEAD FREE, CASE 506AN-01, WDFN6, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    506AN

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    LOGIC LEVEL COMPATIBLE

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    2.5 A

  • Drain-source On Resistance-Max:

    0.09 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    32 pF

  • JESD-30 Code:

    S-XDSO-C6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.52 W

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
