NTMFD5C446NLT1G - onsemi

Description: Low on resistance; High current capability; 100% avalanche tested; RoHS Compliant; Small fooprint (5x6 mm)

Download NTMFD5C446NLT1G Model

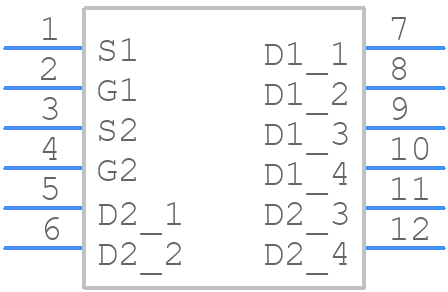

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTMFD5C446NLT1G - onsemi PCB footprint - Other - Other - DFN8 5x6 (SO8FL) CASE 506BT
click to zoom
3D Models
NTMFD5C446NLT1G - onsemi  - 3D model - Other - DFN8 5x6 (SO8FL) CASE 506BT
click to zoom

NTMFD5C446NLT1G Details

  • Manufacturer Part Number:

    NTMFD5C446NLT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-8FL Dual / DFN-8

  • Package Description:

    SO-8FL, DFN-8

  • Manufacturer Package Code:

    506BT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    171 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    25 A

  • Drain-source On Resistance-Max:

    0.0039 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    48 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    125 W

  • Pulsed Drain Current-Max (IDM):

    644 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NTMFD5C446NLT1G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal pad to maintain a safe junction temperature. Monitor the device's thermal resistance (RθJA) and ensure it is within the specified range.
  • Handle the device by the body, avoiding touching the leads or die. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and handling procedures to prevent ESD damage.
  • Check the input voltage, output voltage, and load current. Verify that the device is properly configured and that the output capacitor is within the recommended range. Check for any signs of overheating or thermal shutdown.
  • Use a high-quality, low-ESR input capacitor (e.g., 10uF to 22uF) and a low-ESR output capacitor (e.g., 10uF to 47uF) with a voltage rating that meets or exceeds the maximum output voltage.
