A good PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the package and to connect it to a thermal plane or a heat sink.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device.
The NTMFD5C466NT1G has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging.
Yes, the NTMFD5C466NT1G is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, and to ensure that the device is properly qualified and validated for the specific application.
The recommended soldering conditions for the NTMFD5C466NT1G include a peak temperature of 260°C, a soldering time of 10 seconds, and a soldering method that follows the IPC J-STD-020 standard.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTMFD5C466NT1G Overview

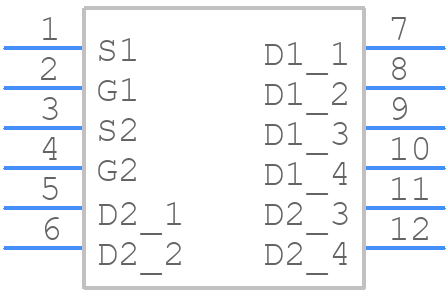

Use the download button to access the NTMFD5C466NT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTMFD,
or try a keyword search, such as Power Field-Effect Transistors
