The recommended PCB layout for optimal thermal performance involves using a minimum of 2oz copper thickness, a solid ground plane, and thermal vias under the package to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust cooling system to keep the junction temperature below the maximum rating.
When paralleling multiple NTMFD5C672NLT1G devices, consider the current sharing, thermal management, and PCB layout to ensure even current distribution and minimal thermal gradients. It's also crucial to follow the manufacturer's guidelines for paralleling devices.
To protect the device from overvoltage and overcurrent conditions, use a suitable voltage regulator, overvoltage protection (OVP) circuit, and overcurrent protection (OCP) circuit. Additionally, ensure that the device is operated within the recommended specifications and follow the manufacturer's guidelines for protection circuits.
The NTMFD5C672NLT1G has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, grounding straps, and follow the manufacturer's guidelines for ESD protection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTMFD5C672NLT1G Overview

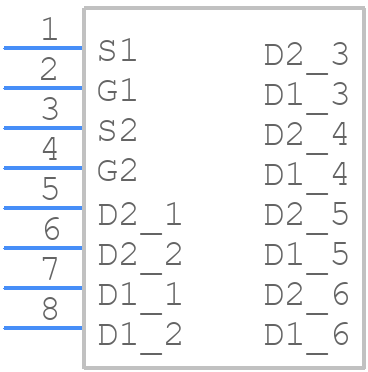

Use the download button to access the NTMFD5C672NLT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTMFD,
or try a keyword search, such as Power Field-Effect Transistors
