A good PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the package and to connect it to a heat sink or a thermal management system.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 150°C for this device). Additionally, consider using a heat sink or thermal management system, and ensure good airflow around the device. It's also important to follow proper PCB design and layout guidelines to minimize thermal resistance.
The recommended soldering conditions for the NTMFD5C680NLT1G are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. It's also important to use a solder with a melting point above 217°C and to follow the manufacturer's recommended soldering profile.
To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap or mat, and to ensure that all equipment and tools are properly grounded. It's also important to follow proper handling and storage procedures, and to use ESD-protective packaging materials.
The recommended storage conditions for the NTMFD5C680NLT1G are: temperature range of -40°C to 150°C, humidity of 60% or less, and protection from direct sunlight and moisture. It's also important to store the devices in their original packaging or in a dry, clean environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTMFD5C680NLT1G Overview

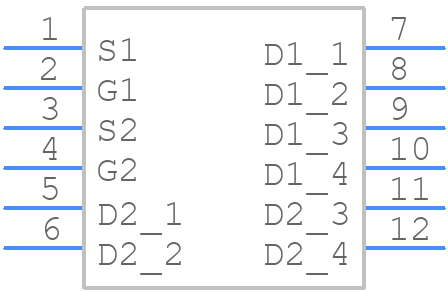

Use the download button to access the NTMFD5C680NLT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTMFD,
or try a keyword search, such as Power Field-Effect Transistors
