Description:Low RDS(on) to Minimize Conduction Losses; Low QG and Capacitance to Minimize Driver Losses; Small Footprint (5x6 mm) for Compact Design; These Devices are Pb−Free, Halogen−Free / BFR Free and are RoHS Compliant
The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, using a copper pour on the top and bottom layers, and connecting the thermal pad to the copper pour using vias. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device.
The NTMFSS1D5N06CL has an integrated ESD protection diode, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Yes, the NTMFSS1D5N06CL is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q101 and is designed to operate in harsh environments. However, it's essential to follow the recommended operating conditions and ensure that the device is properly validated for the specific application.
The suitable gate resistor value depends on the specific application requirements, including the switching frequency, voltage, and current. A general guideline is to use a gate resistor value between 10 ohms and 100 ohms. However, it's recommended to consult the application note or seek guidance from an onsemi representative for a more accurate calculation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTMFSS1D5N06CL Overview

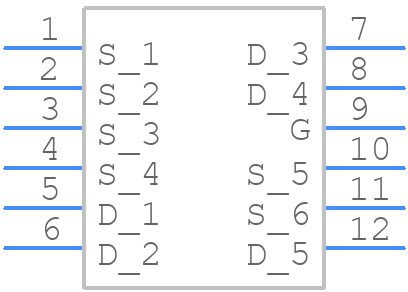

Use the download button to access the NTMFSS1D5N06CL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTMFS,
or try a keyword search, such as Power Field-Effect Transistors
