The maximum operating frequency of NTMJS1D4N06CLTWG is 100 kHz, but it can be operated at higher frequencies with proper thermal management and derating.
To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and derating the device according to the temperature derating curve provided in the datasheet.
The recommended gate drive voltage for NTMJS1D4N06CLTWG is between 10V to 15V, with a maximum gate-source voltage of 20V. However, it's essential to consult the datasheet for specific gate drive requirements and ensure the gate driver is compatible with the device.
To protect NTMJS1D4N06CLTWG from ESD, it's essential to follow proper handling and storage procedures, including using anti-static wrist straps, mats, and packaging materials. Additionally, ensure that the device is properly grounded during assembly and testing.
The maximum allowed voltage imbalance between the drain and source pins of NTMJS1D4N06CLTWG is ±10V. Exceeding this limit can cause damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTMJS1D4N06CLTWG Overview

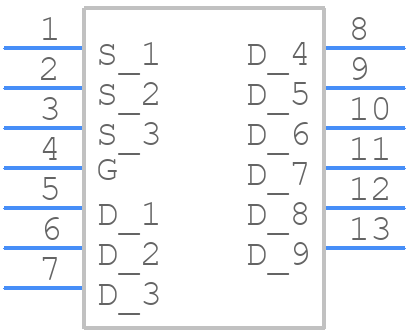

Use the download button to access the NTMJS1D4N06CLTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTMJS,
or try a keyword search, such as Power Field-Effect Transistors
