The recommended PCB layout for optimal thermal performance involves using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using multiple vias to dissipate heat to the other layers. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal contact between the device and the heat sink. Additionally, consider using a thermal interface material (TIM) to fill any gaps between the device and the heat sink.
The maximum allowed voltage on the gate pin is ±20V, but it's recommended to keep it within ±15V to ensure reliable operation and prevent damage to the device.
To protect the device from ESD, handle the device by the body or use an ESD wrist strap, store the device in an ESD-safe container, and use ESD-protected equipment during assembly and testing.
The recommended gate resistor value depends on the specific application, but a typical value is between 1kΩ to 10kΩ. A higher value can help reduce EMI, but may slow down the switching speed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTMT045N065SC1 Overview

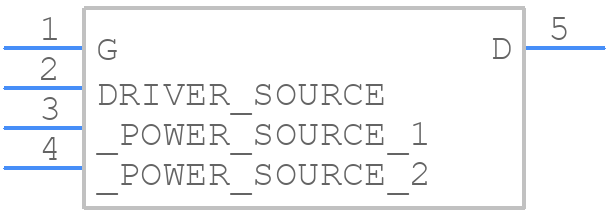

Use the download button to access the NTMT045N065SC1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTMT0,
or try a keyword search, such as Power Field-Effect Transistors
