Technical Content
Part Image

NTMT130N70GN1TXG - onsemi

Description: ESD Safeguard; Ultra High Switching Frequency; No Reverse-Recovery Charge; Low Gate Charge, Low Output Charge

Download NTMT130N70GN1TXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

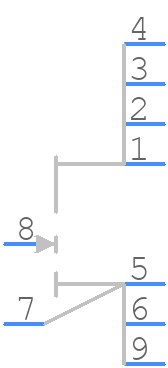

NTMT130N70GN1TXG - onsemi - PCB symbol
click to zoom
PCB Footprints

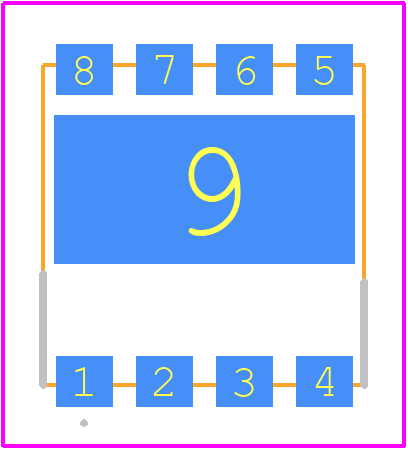

NTMT130N70GN1TXG - onsemi PCB footprint - Other - Other - PTFP−N9 8.00x8.00x0.90, 2.00P CASE 522AG ISSUE O_2026-1.15
click to zoom

NTMT130N70GN1TXG Details

  • Manufacturer Part Number:

    NTMT130N70GN1TXG

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTMT130N70GN1TXG Overview

Use the download button to access the NTMT130N70GN1TXG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NTMT1, or try a keyword search, such as Power Field-Effect Transistors
