NTMTSC4D3N15MC - onsemi

Description: Small Footprint (8x8 mm); Low RDS(on); Low QG and Capacitance; Wettable Flank Option; RoHS Compliant; Enhanced Dualcool exposed top Pad design

Download NTMTSC4D3N15MC Model

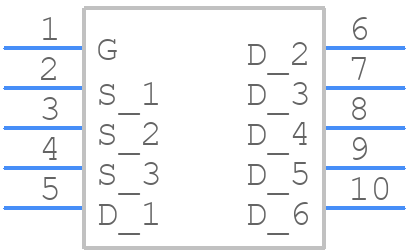

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTMTSC4D3N15MC - onsemi PCB footprint - Other - Other - TDFNW8 8.3x8.4, 2P, DUAL COOL, OPTION 3 CASE 507AS ISSUE B
click to zoom
3D Models
NTMTSC4D3N15MC - onsemi  - 3D model - Other - TDFNW8 8.3x8.4, 2P, DUAL COOL, OPTION 3 CASE 507AS ISSUE B
click to zoom

NTMTSC4D3N15MC Details

  • Manufacturer Part Number:

    NTMTSC4D3N15MC

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Package Description:

    QFN88, TDFNW-8

  • Manufacturer Package Code:

    507AS

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.2

  • Avalanche Energy Rating (Eas):

    354 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    150 V

  • Drain Current-Max (ID):

    174 A

  • Drain-source On Resistance-Max:

    0.00445 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    12.5 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    293 W

  • Pulsed Drain Current-Max (IDM):

    900 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

NTMTSC4D3N15MC Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • Ensure the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Use a heat sink or thermal interface material to maintain a safe junction temperature.
  • The maximum allowed voltage on the gate pin is ±20V, but it's recommended to keep it within ±15V to ensure reliable operation and prevent damage.
  • Yes, the NTMTSC4D3N15MC is suitable for high-frequency switching applications up to 100 kHz. However, ensure proper PCB layout and decoupling to minimize parasitic inductance and capacitance.
  • Handle the device with an ESD wrist strap or mat, and ensure the PCB has ESD protection circuits, such as TVS diodes or ESD protection arrays, to prevent damage.
