The recommended PCB layout for optimal thermal performance involves using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using multiple vias to dissipate heat to the other layers. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended derating curves, ensure good thermal design, and avoid exceeding the maximum junction temperature (Tj) of 150°C. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
The maximum allowed voltage on the gate pin is ±20V, but it's recommended to keep it within ±15V to ensure reliable operation and prevent damage to the device.
To protect the device from ESD, handle the device by the body or pins, use an ESD wrist strap or mat, and ensure that the PCB has ESD protection components such as TVS diodes or resistors. Also, follow proper soldering and assembly procedures to prevent ESD damage.
The recommended gate resistor value depends on the specific application and switching frequency. A general guideline is to use a gate resistor between 10Ω to 100Ω to ensure proper switching and minimize ringing. However, it's recommended to consult the application note or seek guidance from onsemi's technical support team for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTTFD022N10C Overview

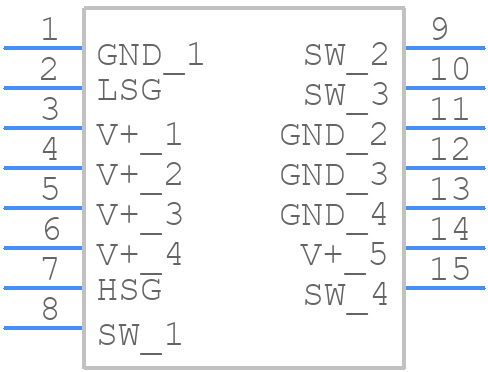

Use the download button to access the NTTFD022N10C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTTFD,
or try a keyword search, such as Power Field-Effect Transistors
