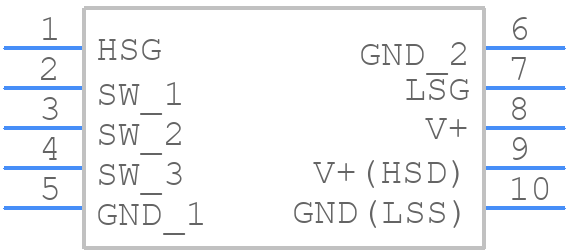

NTTFD1D8N02P1E - onsemi

NTTFD1D8N02P1E Details

• Manufacturer Part Number:

  NTTFD1D8N02P1E

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  PQFN-8

• Manufacturer Package Code:

  483AZ

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• Factory Lead Time:

  18 Weeks

• Date Of Intro:

  2020-02-21

• Manufacturer:

  onsemi

• YTEOL:

  7.2

• Configuration:

  COMMON SOURCE, 2 ELEMENTS WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  25 V

• Drain Current-Max (ID):

  61 A

• Drain-source On Resistance-Max:

  0.0053 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  2

• Number of Terminals:

  8

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  36 W

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
