SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
80 A
Drain-source On Resistance-Max:
0.0025 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
29 pF
JESD-30 Code:
S-PQCC-N8
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
8
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
26 W
Pulsed Drain Current-Max (IDM):
327 A
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
NTTFD2D8N03P1E Frequently Asked Questions (FAQs)
The maximum junction temperature for the NTTFD2D8N03P1E is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
To ensure proper biasing, follow the recommended operating conditions outlined in the datasheet. This includes setting the gate-source voltage (Vgs) within the recommended range, typically between 2V to 5V, and ensuring the drain-source voltage (Vds) is within the specified maximum rating.
For optimal thermal performance, it's recommended to use a multi-layer PCB with a thermal relief pattern under the device. Ensure good thermal conductivity by using a thermal interface material (TIM) between the device and the heat sink. A heat sink with a thermal resistance of less than 10°C/W is recommended.
To protect the NTTFD2D8N03P1E from ESD, follow proper handling and storage procedures. Use an anti-static wrist strap or mat when handling the device, and store the device in an anti-static bag or container. Ensure the PCB design includes ESD protection components, such as TVS diodes or ESD protection arrays.
A gate driver IC with a high current capability (e.g., 1A to 2A) is recommended to ensure fast switching times and low power losses. The gate driver should be able to provide a voltage swing of at least 5V to 10V to fully enhance the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTTFD2D8N03P1E Overview

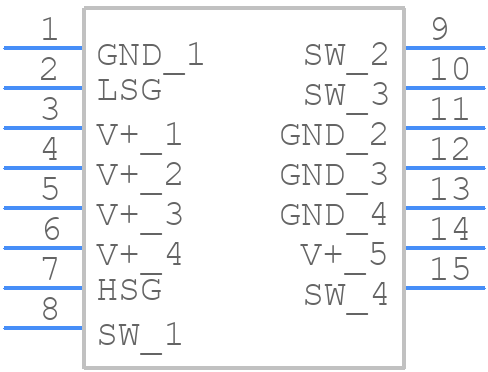

Use the download button to access the NTTFD2D8N03P1E schematic symbol, PCB footprint, and 3D model.
