The recommended PCB layout involves keeping the drain and source pins as close as possible to minimize inductance. A thermal pad on the bottom of the package should be connected to a copper plane on the PCB to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal management.
To ensure proper biasing, the gate-source voltage (Vgs) should be set between 4.5V to 10V, and the drain-source voltage (Vds) should be set within the recommended operating range. A gate driver or voltage regulator can be used to provide a stable bias voltage.
Monitor the device's junction temperature (Tj), drain-source voltage (Vds), and drain current (Id) to prevent overheating or damage. The maximum junction temperature is 150°C, and the device should be operated within the recommended safe operating area (SOA).
Yes, the NTTFS002N04CLTAG is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, such as wrist straps, mats, and bags. Follow proper assembly and handling procedures to prevent ESD damage.
Store the devices in their original packaging or in a dry, nitrogen-filled environment. Avoid exposing the devices to moisture or high humidity. Follow the recommended moisture sensitivity level (MSL) rating and baking procedures to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTTFS002N04CLTAG Overview

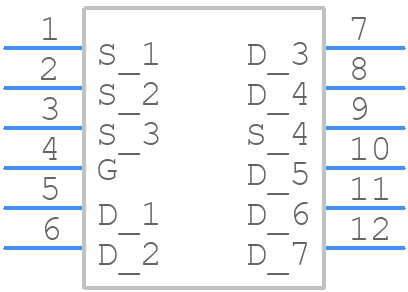

Use the download button to access the NTTFS002N04CLTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTTFS,
or try a keyword search, such as Power Field-Effect Transistors
