The recommended PCB layout involves keeping the drain and source pins as close as possible to minimize inductance. A thermal pad on the bottom of the package should be connected to a copper plane on the PCB to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal management.
To ensure proper biasing, the gate-source voltage (Vgs) should be set between 4.5V and 10V, and the drain-source voltage (Vds) should be set between 0V and 30V. The device should also be operated within the recommended temperature range of -55°C to 150°C.
Exceeding the maximum Tj rating can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It's essential to ensure proper thermal management and design margins to prevent overheating.
The NTTFS008N04CTAG has an integrated ESD protection diode, but additional external protection measures may be necessary depending on the application. It's recommended to follow proper ESD handling procedures during assembly and testing, and to consider adding external ESD protection devices if necessary.
Onsemi provides reliability data and quality metrics for the NTTFS008N04CTAG, including FIT rates, MTBF, and failure rates. These metrics can be found in the device's reliability report or by contacting onsemi's support team.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTTFS008N04CTAG Overview

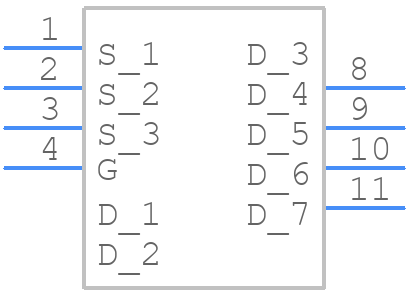

Use the download button to access the NTTFS008N04CTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTTFS,
or try a keyword search, such as Power Field-Effect Transistors
