The recommended PCB layout involves keeping the drain and source pins as close as possible to minimize inductance. A thermal pad on the bottom of the package should be connected to a copper plane on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended for the PCB.
To ensure proper biasing, the gate-source voltage (Vgs) should be set between 4.5V to 10V, and the drain-source voltage (Vds) should be set between 10V to 30V. The device should be operated within the safe operating area (SOA) to prevent damage.
Monitor the device's junction temperature (Tj), drain-source voltage (Vds), and drain current (Id) to prevent overheating, overvoltage, and overcurrent conditions. Ensure the device operates within the specified ratings and derating curves.
The gate resistor value depends on the specific application and switching frequency. A general guideline is to use a gate resistor value between 10Ω to 100Ω. A lower value can improve switching speed but increases power consumption, while a higher value reduces power consumption but slows down switching speed.
The NTTFS012N10MDTAG has an ESD rating of HBM 2kV and CDM 1kV. Handle the device with ESD-protective equipment, such as wrist straps and mats, and avoid touching the pins or exposing the device to static electricity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTTFS012N10MDTAG Overview

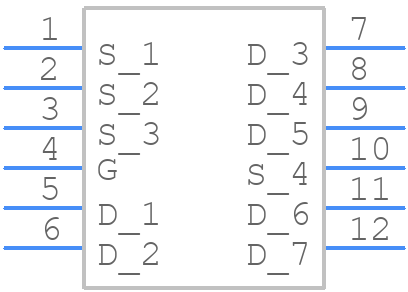

Use the download button to access the NTTFS012N10MDTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTTFS,
or try a keyword search, such as Power Field-Effect Transistors
