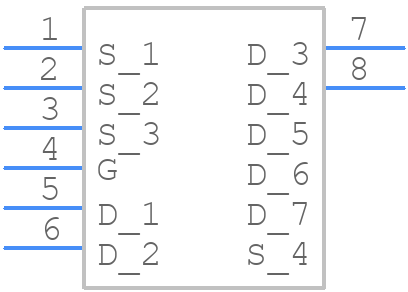

NTTFS5D6N08XLTAG - onsemi

NTTFS5D6N08XLTAG Details

• Manufacturer Part Number:

  NTTFS5D6N08XLTAG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  WDFN-8

• Package Description:

  WDFN-8

• Manufacturer Package Code:

  511DY

• ECCN Code:

  EAR99

• Manufacturer:

  onsemi

• YTEOL:

  6

• Avalanche Energy Rating (Eas):

  57 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  80 V

• Drain Current-Max (ID):

  79 A

• Drain-source On Resistance-Max:

  0.0053 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  14 pF

• JESD-30 Code:

  R-PDSO-F8

• Number of Elements:

  1

• Number of Terminals:

  8

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  82 W

• Pulsed Drain Current-Max (IDM):

  290 A

• Surface Mount:

  YES

• Terminal Form:

  FLAT

• Terminal Position:

  DUAL

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
