A recommended PCB layout for optimal thermal performance would be to have a large copper area underneath the device, connected to a solid ground plane, and to use thermal vias to dissipate heat. Additionally, keeping the PCB layer stack-up symmetrical and using a thermal interface material (TIM) between the device and the heat sink can also improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) and storage temperature (Tstg). Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device. It's also crucial to follow proper PCB design and layout guidelines to minimize thermal resistance.
Exceeding the maximum rated current can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's essential to ensure that the device operates within the recommended current ratings to maintain reliability and performance. If higher currents are required, consider using a device with a higher current rating or implementing current limiting or protection circuits.
To select the right heat sink for the NTTFSS1D1N02P1E, consider the device's power dissipation, maximum junction temperature, and the desired thermal resistance. Choose a heat sink with a thermal resistance that meets or exceeds the device's requirements, and ensure it is compatible with the device's package type and size. Additionally, consider factors like airflow, heat sink material, and surface finish when making your selection.
The NTTFSS1D1N02P1E has built-in ESD protection, but it's still essential to follow proper ESD handling and protection procedures during assembly, testing, and storage. This includes using ESD-safe materials, grounding straps, and wrist straps, as well as following proper handling and storage techniques to prevent damage from electrostatic discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTTFSS1D1N02P1E Overview

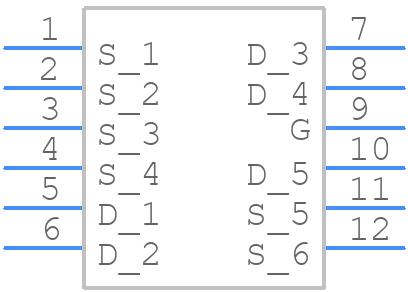

Use the download button to access the NTTFSS1D1N02P1E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTTFS,
or try a keyword search, such as Power Field-Effect Transistors
