Part Image

NTTFSSCH0D7N02X - onsemi

Description: MOSFET - Power, Single N-Channel, Source Down Dual Cool 33, WDFN9 25 V, 0.58 m, 310 A

Download NTTFSSCH0D7N02X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

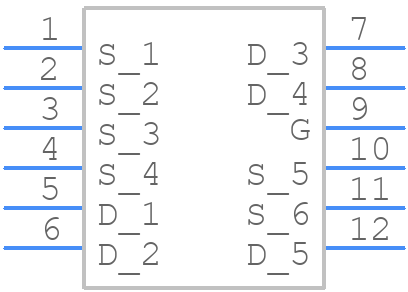

NTTFSSCH0D7N02X - onsemi - PCB symbol
click to zoom
PCB Footprints
NTTFSSCH0D7N02X - onsemi PCB footprint - Other - Other - WDFN9 3.30x3.30x0.58, 0.65P CASE 511BX ISSUE B
click to zoom
3D Models
NTTFSSCH0D7N02X - onsemi - 3D model - Other - WDFN9 3.30x3.30x0.58, 0.65P CASE 511BX ISSUE B
click to zoom

NTTFSSCH0D7N02X Details

  • Manufacturer Part Number:

    NTTFSSCH0D7N02X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    5

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTTFSSCH0D7N02X Overview

Use the download button to access the NTTFSSCH0D7N02X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTTFS, or try a keyword search, such as Power Field-Effect Transistors
