Part Image

NTTFSSCH1D3N04XL - onsemi

Description: These Devices are Pb−Free, Halogen−Free/BFR−Free and are RoHS Compliant; Ultra Low Rds(on) to Improve System Efficiency; Low Qg and Capacitance to Minimize Driving and Switching Losses; Excellent Thermal Conduction by Advanced Source−Down Center Gate Dual−Cooling Package Technology (3.3x3.3mm); Board level reliability (BLRT testing): 1000cycle with -40℃ to 125℃, 10min. dwell, 20℃/min, 6layers 2.35T

Download NTTFSSCH1D3N04XL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

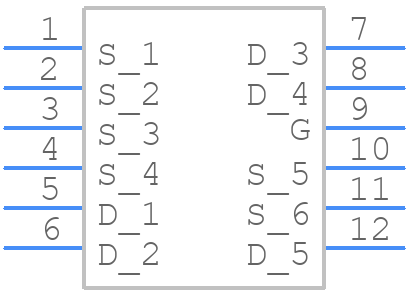

NTTFSSCH1D3N04XL - onsemi - PCB symbol
click to zoom
PCB Footprints
NTTFSSCH1D3N04XL - onsemi PCB footprint - Other - Other - WDFN9 3.30x3.30x0.58, 0.65P CASE 511BX ISSUE B
click to zoom
3D Models
NTTFSSCH1D3N04XL - onsemi - 3D model - Other - WDFN9 3.30x3.30x0.58, 0.65P CASE 511BX ISSUE B
click to zoom

NTTFSSCH1D3N04XL Details

  • Manufacturer Part Number:

    NTTFSSCH1D3N04XL

  • Brand Name:

    onsemi

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN9 3.30x3.30x0.58, 0.65P

  • Package Description:

    WDFN-9

  • Manufacturer Package Code:

    511BX

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTTFSSCH1D3N04XL Overview

Use the download button to access the NTTFSSCH1D3N04XL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTTFS, or try a keyword search, such as Power Field-Effect Transistors
